UI Components

The Tag CICD Module integrates with the Ignition Designer interface to provide a seamless user experience. This page details the various UI components added by the module.

Tag CICD Toolbar​

The module adds a dedicated toolbar to the Ignition Designer interface:

Tag CICD Toolbar

The toolbar contains an Import and Export button that allows the user to quickly select the configurations to import/export based off the current configuration export-config.json

Tools Menu Integration​

In addition to the toolbar, the module adds entries to the Designer's Tools menu:

Tools Menu

Tag Configuration Manager Dialog​

The Tag Configuration Manager is the central UI for managing your export/import configurations:

Configuration Manager

Main Components​

The dialog contains the following elements:

  1. Configuration Table: Displays all saved configurations with their properties
  2. Export Config Button: Exports the current configurations to a JSON file
  3. Import Config Button: Imports configurations from a JSON file
  4. Add Button: Creates a new configuration
  5. Edit Button: Modifies the selected configuration
  6. Delete Button: Removes the selected configuration
  7. Export Selected Button: Executes an export operation using the selected configuration
  8. Import Selected Button: Executes an import operation using the selected configuration
  9. Edit Order Button: Enters edit mode to reorder configurations
  10. Close Button: Closes the dialog
  11. Status Label: Displays operation status and results

Configuration Table Columns​

The table displays the following information for each configuration:

  • Provider: The tag provider name
  • Base Tag Path: The starting path for export/import
  • Export Path: The file path for the operation
  • Export Mode: The selected export format
  • Collision Policy: How conflicts are handled
  • Include UDT Defs: Whether UDT definitions are included

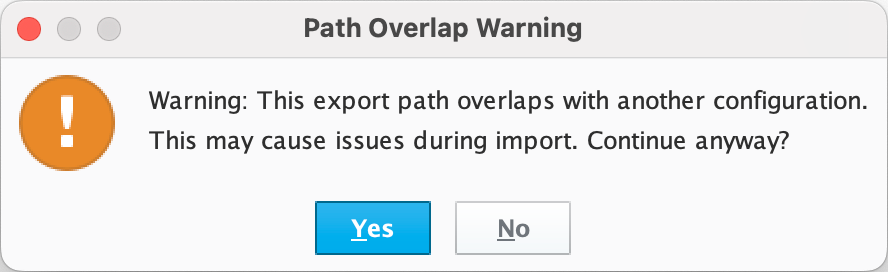

Path Overlap Warning​

The Configuration Manager shows warning icons for export paths that might overlap:

Path Overlap Warning

This helps prevent issues where one export might overwrite files from another export.

Tag Configuration Editor Dialog​

When adding or editing a configuration, the Tag Configuration Editor dialog appears:

Configuration Editor

Editor Components​

The dialog contains the following elements:

  1. Provider Dropdown: Select the tag provider
  2. Tag Selection Tree: Browse and select tags and folders
  3. Export Mode Dropdown: Choose the export/import format
  4. Collision Policy Dropdown: Select the conflict handling policy
  5. Export Path Field: Specify the gateway file system path
  6. Full Path Preview: Shows the complete path on the gateway
  7. Export Provider Root Checkbox: Option to export from provider root
  8. Include UDT Definitions Checkbox: Option to include UDT definitions
  9. Cancel Button: Discard changes and close the dialog
  10. Save/Add Button: Save the configuration and close the dialog

Tag Export/Import Dialog​

When using the toolbar buttons, a dialog appears to select configurations for immediate export/import:

Export/Import Buttons

Dialog Components​

The dialog contains:

  1. Configuration Tree: Hierarchical view of configurations grouped by provider
  2. Select All/None Links: Quickly select or deselect all configurations
  3. Cancel Button: Closes the dialog without performing operations
  4. Export/Import Button: Executes the selected operations

Export/Import Order Management​

When working with multiple configurations, the order of operations is important. The Edit Order mode allows you to arrange configurations:

Edit Order Mode

Order Management Features​

  • Drag and Drop: Reorder configurations by dragging them
  • Visual Feedback: Highlights indicate the drop position
  • Order Impact: During imports, configurations are processed in the displayed order
